eldoLED ECOdrive 241/A2 - 20w 0-10V dimmable constant current LED driver
As standard the ECOdrive product will be sent out pre-configured for 350mA current.Ā The current is settable at any interval between 150mA and 1050mA, however to carry out this adjustment you will require theĀ TOOLbox proĀ accessory as well as a suitable computer.Ā
If you would prefer, we can pre-configure the drivers to your requirements for an additional Ā£1.50+vat per driver.Ā PleaseĀ click hereĀ for this service.
ECOdrive 241/A2 delivers 20W and is 0-10V compatible. As all ECOdrives, the 241/A2 smoothly dims down to 1%.

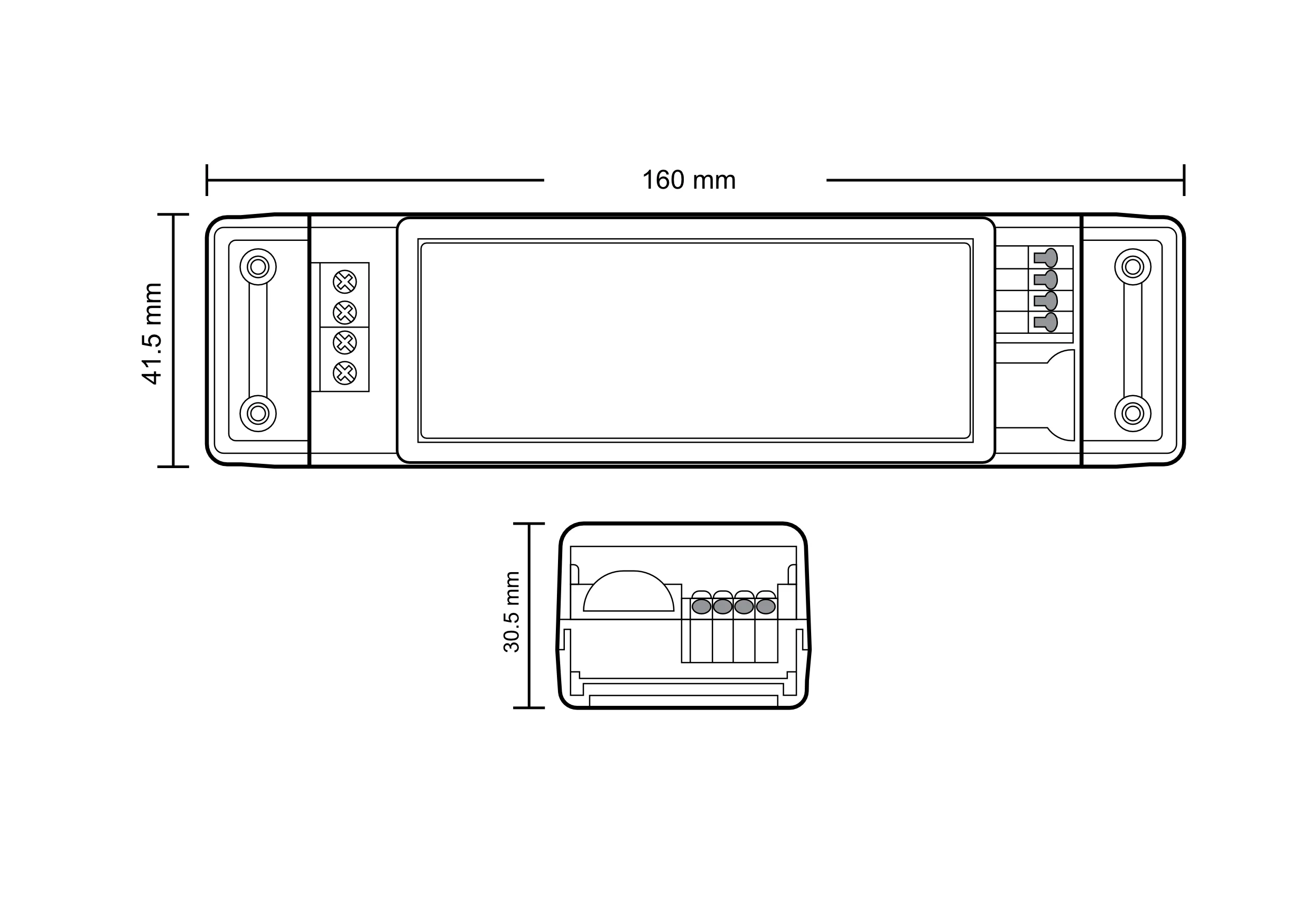

The 20W /A independent LED driver with cable retentionĀ is perfect for downlight applications in Europe where the LED driver needs to fit through a 50mm diameter hole in the ceiling into a plenum with a 110mm height between functional and decorative ceiling.
Ā Features
- Hybrid HydraDrive: provides the smoothest flicker-free high-performance dimming to 1% for every fixture
- LEDcode: configurable design to work with most constant current LED modules and arrays, while providing a connection point to integrated peripheral controls
- NTC interface for robust thermal management
Benefits
- Increase performance and capability of any LED fixture
- Reduce inventory and decrease lead times with configurable drivers
- Short lead times, designed to meet the most aggressive timelines
- Trusted brand with proven track record of performance and reliability
Input Characteristics
Ā
Nominal input voltage range AC: 220 - 240V (ENEC)
Absolute input voltage range AC: 198 - 264V
Nominal input voltage range DC: 176 - 250V
Maximum input current: 0.15A @ 230V / 50Hz
Input frequency range: 50 - 60Hz
Output Characteristics
Ā
Maximum LED output power: 20W
Number of LED outputs: 1
Programmable LED output current range: 150 - 1050mA
LED output type: Programmable in 1mA increments within specified current range
LED output current tolerance: +/- 5% at programmed LED output current
LED output voltage range: 2 - 40V
Ā
Downloads
Ā
Datasheet EC0241A2
Specification submittal sheet
