eldoLED LINEARdrive 210D – 8A (12/24v) DALI dimmable constant voltage LED driver

Product image 1
Product image 2
Product image 3
Product image 4

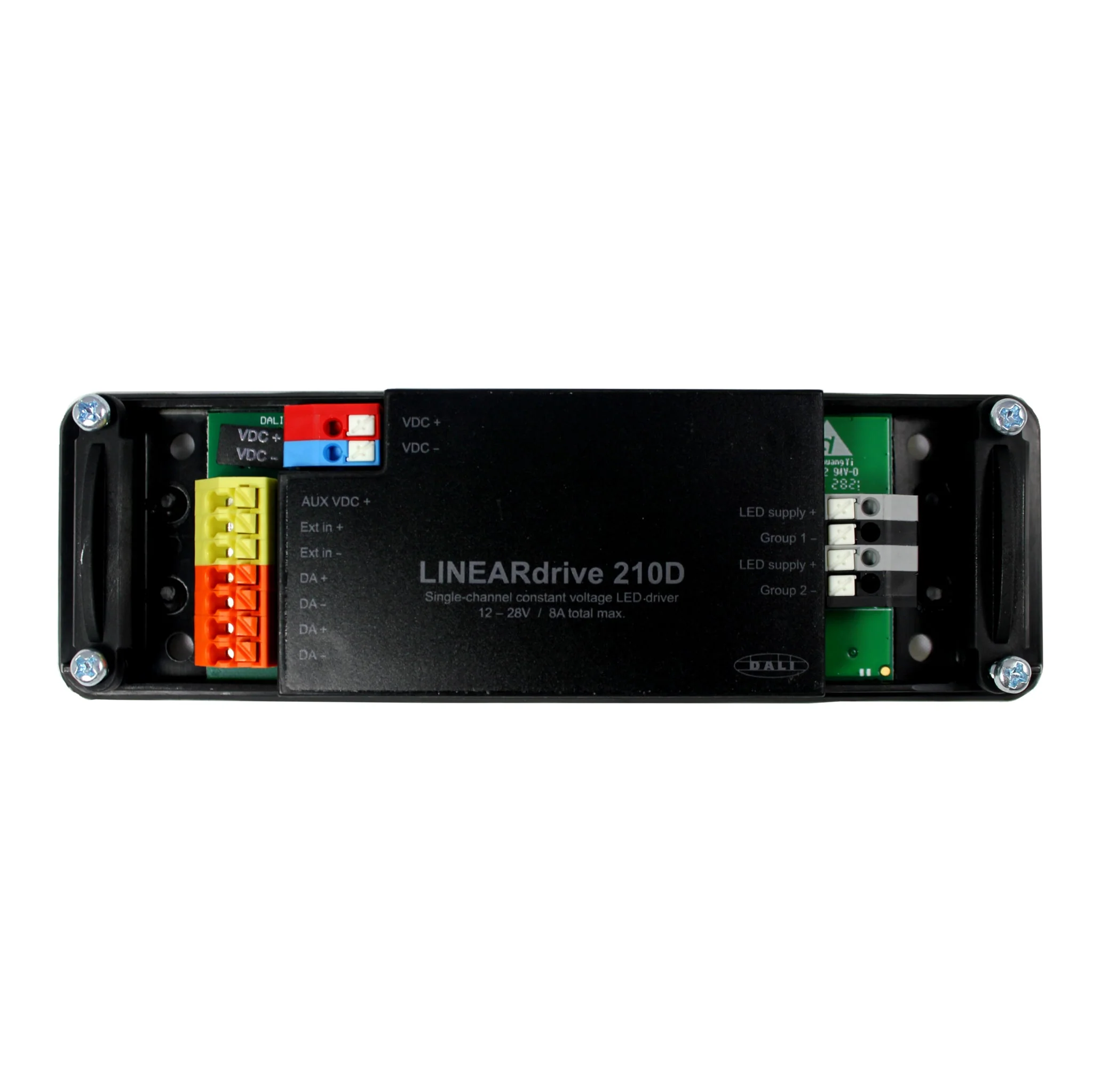

eldoLED LINEARdrive 210D – 8A (12/24v) DALI dimmable constant voltage LED driver

LINEARdrive 210D is a constant voltage LED driver. It features two LED outputs that are controlled via DALI. Both LED outputs are controlled over the same ballast, giving them the exact same behaviour.

The driver features wire restraints which make it perfectly suited for independent installations.

Features

  • HydraDrive: provides the smoothest colour fades and dimming to dark
  • Auxiliary power output

Benefits

  • Exceptionally smooth colour fades

Input Characteristics

Nominal input voltage DC: 12 - 28V
Maximum input current: 8A, irrespective of PSU voltage

Output Characteristics

LED output load: 8A maximum, irrespective of whether using one or both LED outputs
Maximum LED output power: 200W
Number of LED outputs: 2
LED output voltage: 12 - 28V
Auxiliary output voltage: equal to input voltage
Auxiliary output current: 180mA @ 12V, 90mA @ 24V
Maximum auxiliary output power: 2W

Downloads

Datasheet LIN210D1
Specification submittal sheet
Wiring diagram
Quick Start Guide



$46.05

Original: $131.56

-65%
eldoLED LINEARdrive 210D – 8A (12/24v) DALI dimmable constant voltage LED driver—

$131.56

$46.05

Product Information

Shipping & Returns

Description

LINEARdrive 210D is a constant voltage LED driver. It features two LED outputs that are controlled via DALI. Both LED outputs are controlled over the same ballast, giving them the exact same behaviour.

The driver features wire restraints which make it perfectly suited for independent installations.

Features

  • HydraDrive: provides the smoothest colour fades and dimming to dark
  • Auxiliary power output

Benefits

  • Exceptionally smooth colour fades

Input Characteristics

Nominal input voltage DC: 12 - 28V
Maximum input current: 8A, irrespective of PSU voltage

Output Characteristics

LED output load: 8A maximum, irrespective of whether using one or both LED outputs
Maximum LED output power: 200W
Number of LED outputs: 2
LED output voltage: 12 - 28V
Auxiliary output voltage: equal to input voltage
Auxiliary output current: 180mA @ 12V, 90mA @ 24V
Maximum auxiliary output power: 2W

Downloads

Datasheet LIN210D1
Specification submittal sheet
Wiring diagram
Quick Start Guide
