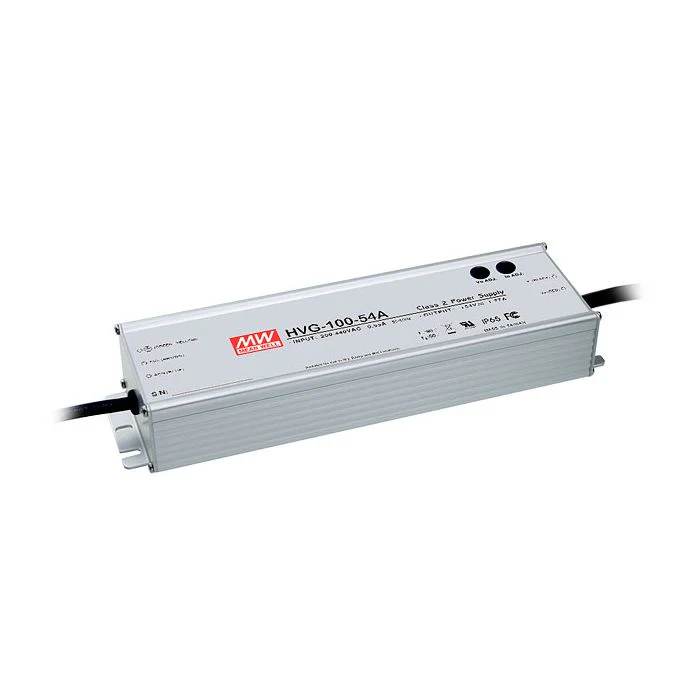

HVG-100-S - Mean Well HVG-100 Series LED Driver 100W 15V – 54V
Built-in 3 in 1 dimming function (0~10VDC, PWM signal, or resistance)Wide input range: 180~480VACProtections: Short circuit / Over voltage / Over temperatureOther features:High efficiency up to 92%Built-in active PFCCooling by free air convectionC.V. + C.C. mode designOutput current adjustable through output cable or internal potentiometerSuitable for dry, damp and wet locationsSuitable for LED lighting and street lighting applicationsIP67 design 5 years warranty
More Information Output Wattage (W) 100 Output Voltage Choose Option DC Output Adjustment +/-10% rated output voltage EMC Standards Design refer to EN55015, FCC part 15 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 Input Voltage 180~480VAC, 254~679VDC Safety Standards Design refer to UL8750, TUV EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40 ~ +70°C(Refer to "Derating Curve") PDF Datasheet HVG-100-spec.pdf
More Information Output Wattage (W) 100 Output Voltage Choose Option DC Output Adjustment +/-10% rated output voltage EMC Standards Design refer to EN55015, FCC part 15 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 Input Voltage 180~480VAC, 254~679VDC Safety Standards Design refer to UL8750, TUV EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40 ~ +70°C(Refer to "Derating Curve") PDF Datasheet HVG-100-spec.pdf
$50.88
Original: $145.36
-65%HVG-100-S - Mean Well HVG-100 Series LED Driver 100W 15V – 54V—
$145.36
$50.88Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Built-in 3 in 1 dimming function (0~10VDC, PWM signal, or resistance)Wide input range: 180~480VACProtections: Short circuit / Over voltage / Over temperatureOther features:High efficiency up to 92%Built-in active PFCCooling by free air convectionC.V. + C.C. mode designOutput current adjustable through output cable or internal potentiometerSuitable for dry, damp and wet locationsSuitable for LED lighting and street lighting applicationsIP67 design 5 years warranty
More Information Output Wattage (W) 100 Output Voltage Choose Option DC Output Adjustment +/-10% rated output voltage EMC Standards Design refer to EN55015, FCC part 15 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 Input Voltage 180~480VAC, 254~679VDC Safety Standards Design refer to UL8750, TUV EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40 ~ +70°C(Refer to "Derating Curve") PDF Datasheet HVG-100-spec.pdf
More Information Output Wattage (W) 100 Output Voltage Choose Option DC Output Adjustment +/-10% rated output voltage EMC Standards Design refer to EN55015, FCC part 15 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 Input Voltage 180~480VAC, 254~679VDC Safety Standards Design refer to UL8750, TUV EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40 ~ +70°C(Refer to "Derating Curve") PDF Datasheet HVG-100-spec.pdf
