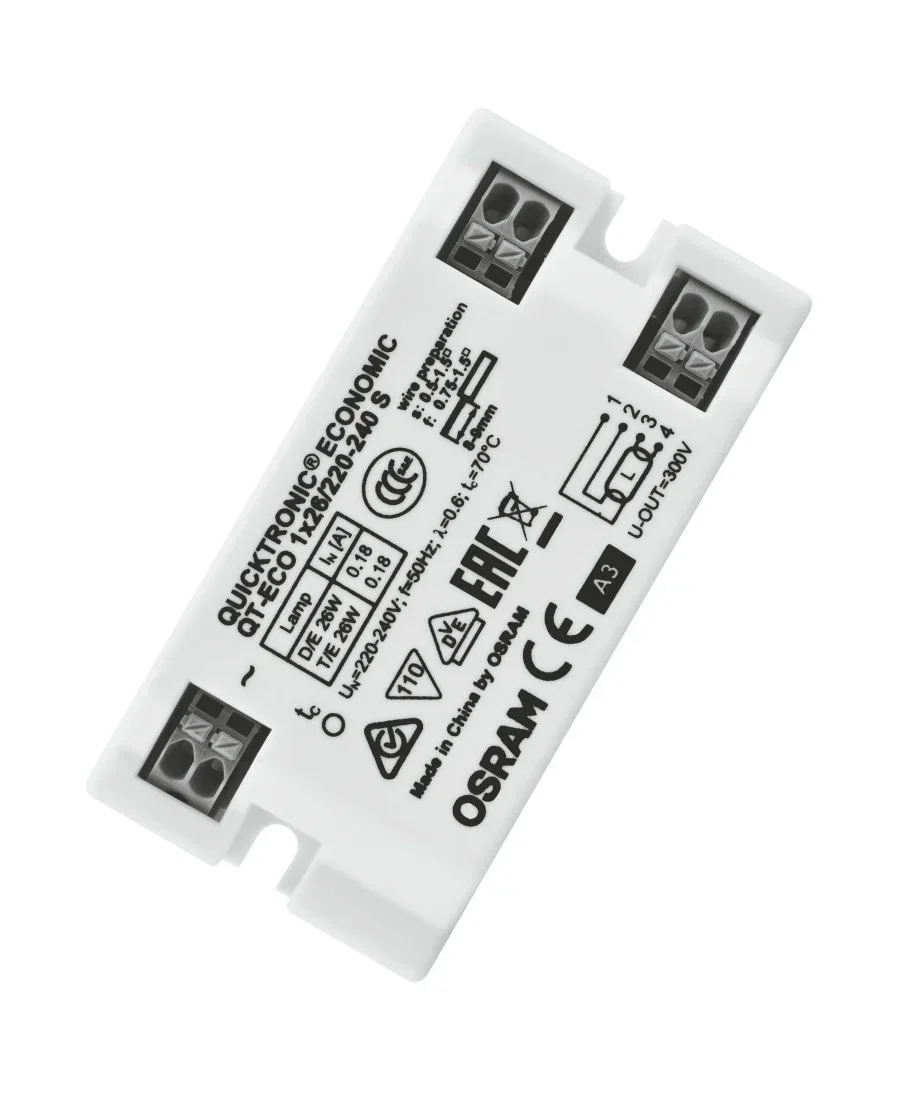

LEDVANCE/OSRAM - QTECO126-S-OS 1x26w DE/TE Electronic Ballast Square
1x26w DE/TE Electronic Ballast Square - Osram - QTECO126-S
- Compact housing
- Automatic restart after lamp replacement
- Large input voltage range
- Public buildings
Technical Data
Electrical data
Nominal voltage
220…240 V
Mains frequency
50 Hz
Input voltage DC
176…254 V
Maximum output power
16 W
Efficiency in full-load
84 %
Operating frequency
40 kHz
Max. ECG no. on circuit breaker 10 A (B)
68
Max. ECG no. on circuit breaker 16 A (B)
112
Inrush current
10 A
Light technical data
Starting time
1.0 s
Dimensions & weight
Length
80.0 mm
Width
40.0 mm
Height
22.0 mm
Mounting hole spacing, length
72.0…75.0 mm
Product weight
50.00 g
Temperatures & operating conditions
Ambient temperature range
-15…+50/-15…+50 °C
Permitted rel. humidity during operation
5…85 %
Lifespan
ECG lifetime
30000 h
Additional product data
Suitable for lamp power (1 lamp)
4…16 W
Capabilities
End of lamp life safety shutdown
EOL T.2
Suitable for fixtures with prot. class
I / II
Dimmable
No
Intended for no-load operation
No
Max. cable length to lamp/LED module
1.0 m / 0.5 m
Certificates & standards
Approval marks – approval
VDE
EEI – Energy Label
A2/A3
Standards
Acc. to EN 61347-2-3/Acc. to EN 55015:2006 + A1:2007/Acc. to EN 61000-3-2/Acc. to EN 61547
Type of protection
IP20
Protection class
I
Logistical data
Commodity code
85041080900
Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration
19-05-2023
Primary Article Identifier
4050300638584
Candidate List Substance 1
Lead
CAS No. of substance 1
7439-92-1
Safe Use Instruction
The identification of the Candidate List substance is sufficient to allow safe use of the article.
Declaration No. in SCIP database
f9c950dd-e265-43d3-990e-9e4c82497823
Packaging information
EAN |
Unit |
Piece |
Dimension l x w x h |
Weight |
|---|---|---|---|---|
| 4050300638584 | UNVÂ
|
1 | ||
| 4050300655260 | VSÂ
|
50 | 212mm x 172mm x 143mm | 2684.00g |
