LitePlan NED/3/80-K Module, Battery and Charge LED Indicator from Lite-Plan -DISCONTINUED
OBSOLETE, Liteplan replacement detailed belowĀ

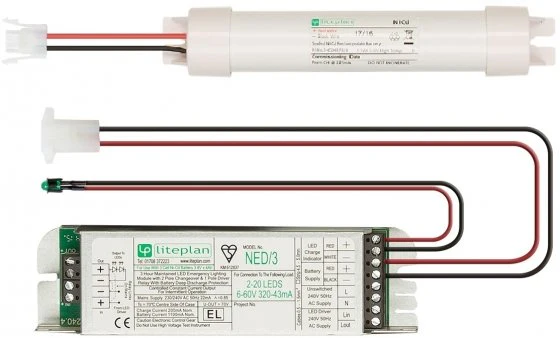

Obsolete, Liteplan has replaced it with the NLP/1S/80-K . This is what you will be sent including the new battery which you have to use. Do not use the existing battery a new one will be suppliedĀ as per the below imageĀ
Ā
LitePlan NED/3/80-K Module Battery and Charge LED Indicator from Lite-Plan
Model: NED/3/80/KIT
The NED/3/80 Kit is a similar product to the NED/3 Kit, with the voltage range extended from 6-60 Volts to 6-80 Volts converting 2 to 30 LED chips in series. Liteplan's NED emergency lighting conversion modules have been specifically designed to convert a wide range of LED types and automatically adjust to the output current to provide the best match between battery and load, ensuring maximum lumination to battery duration. This product has a load current limit of 2A with an average emergency power of 2.6W.
Technical Specifications
| Control Gear Type | Conversion Module |
|---|---|
| Accessory Type | Ballast |
| Wattage | 5W W |
| Manufacturer | Lite Plan |
| Dimming? | Non-Dimmable |
| Length | 165 mm |
| Type | Control Gear |
| LED Current Limit | 320mA |
| Bat. Current Limit | 1100mA |
| Mains Supply | 230-240V AC 50/60 Hz |
| Charge Current | 200mA Nominal |
| Recharge Period | 24 Hours |
| Compatible Lamp Type | LED |
| Control Gear Technology | LED |
