MST Discharge Capacitors Please Select:=

Product image 1

MST Discharge Capacitors Please Select:=

  • Capacitors

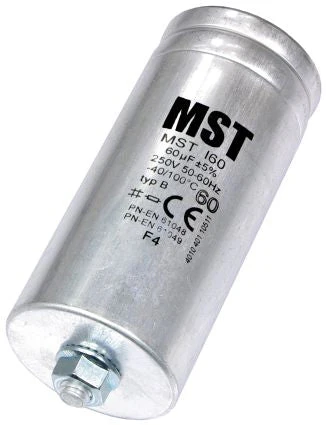

    Power factor capacitors for use in discharge lamp circuits.

    Main characteristics:

    • Type B, aluminium housing
    • Low inductance
    • Push-in terminal (Wago 214 terminal) or cable (2x0,75mm²)
    • Self-healing ability
    • Overpressure safety break-action mechanism
    • Discharge resistor
    • Requirement a clearance of at least 10mm above
      the terminals to ensure proper activation break action mechanism

    Technical data:

    Parameter Value
    Tolerance of capacitance ±5%
    Rated frequency 50/60Hz
    Relative humidity in capacitor environment at 20÷25°C 75% (annual average)
    95% (max value within 30 days)
    95% (max value within 30 days)
    Service life 30000h
    Condensation Not permitted
    Dissipation factor (tgd) ≤ 0,0015 at 50Hz/250V
    Dielectric strength:
       - between terminals 2U_N/50Hz - 2sec.
       - between terminals connected together and case 2kV / 50Hz - 2sec
    $6.89

    Original: $19.69

    -65%
    MST Discharge Capacitors Please Select:=—

    $19.69

    $6.89

    Product Information

    Shipping & Returns

    Description

    • Capacitors

      Power factor capacitors for use in discharge lamp circuits.

      Main characteristics:

      • Type B, aluminium housing
      • Low inductance
      • Push-in terminal (Wago 214 terminal) or cable (2x0,75mm²)
      • Self-healing ability
      • Overpressure safety break-action mechanism
      • Discharge resistor
      • Requirement a clearance of at least 10mm above
        the terminals to ensure proper activation break action mechanism

      Technical data:

      Parameter Value
      Tolerance of capacitance ±5%
      Rated frequency 50/60Hz
      Relative humidity in capacitor environment at 20÷25°C 75% (annual average)
      95% (max value within 30 days)
      95% (max value within 30 days)
      Service life 30000h
      Condensation Not permitted
      Dissipation factor (tgd) ≤ 0,0015 at 50Hz/250V
      Dielectric strength:
         - between terminals 2U_N/50Hz - 2sec.
         - between terminals connected together and case 2kV / 50Hz - 2sec
