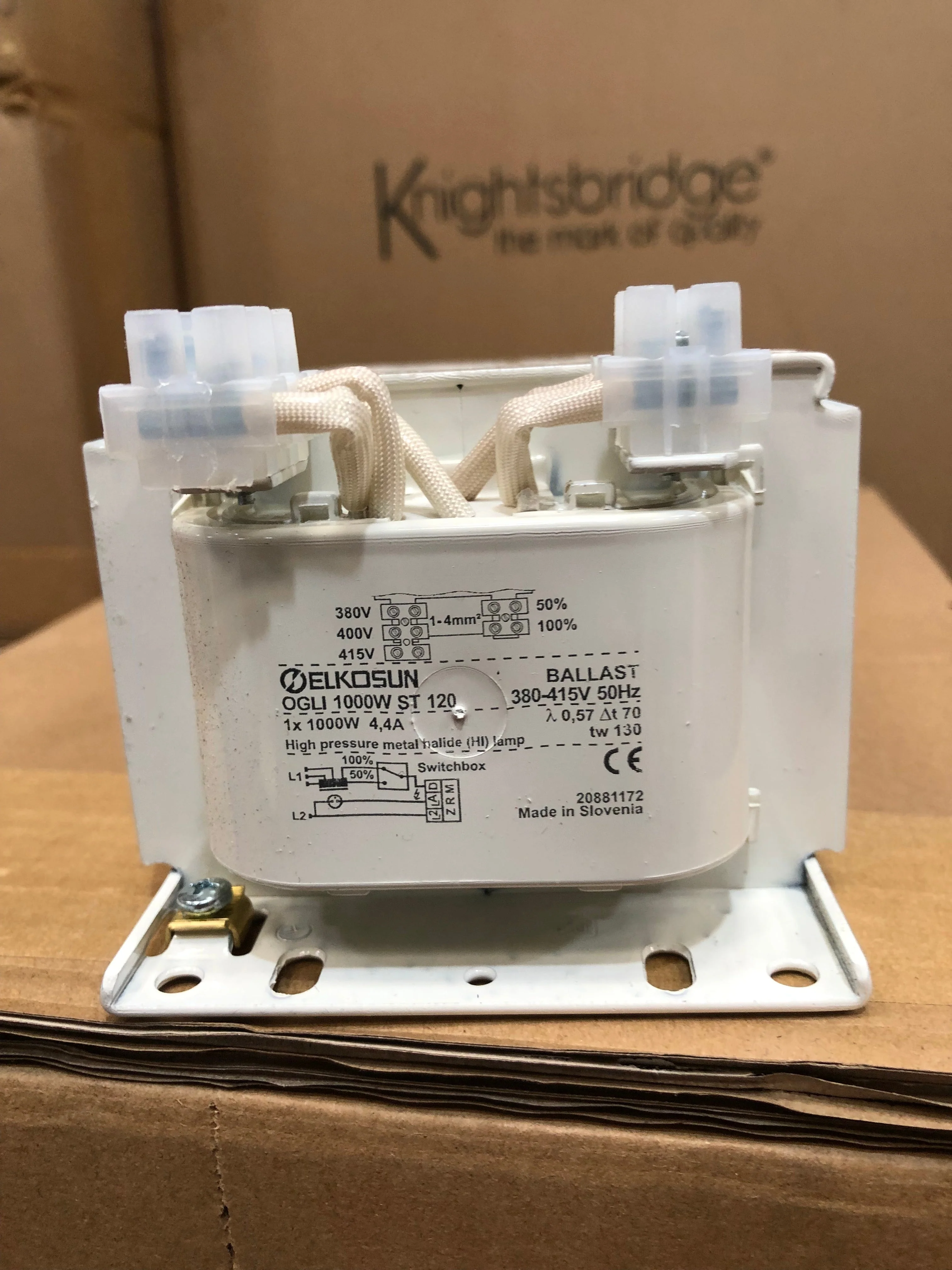

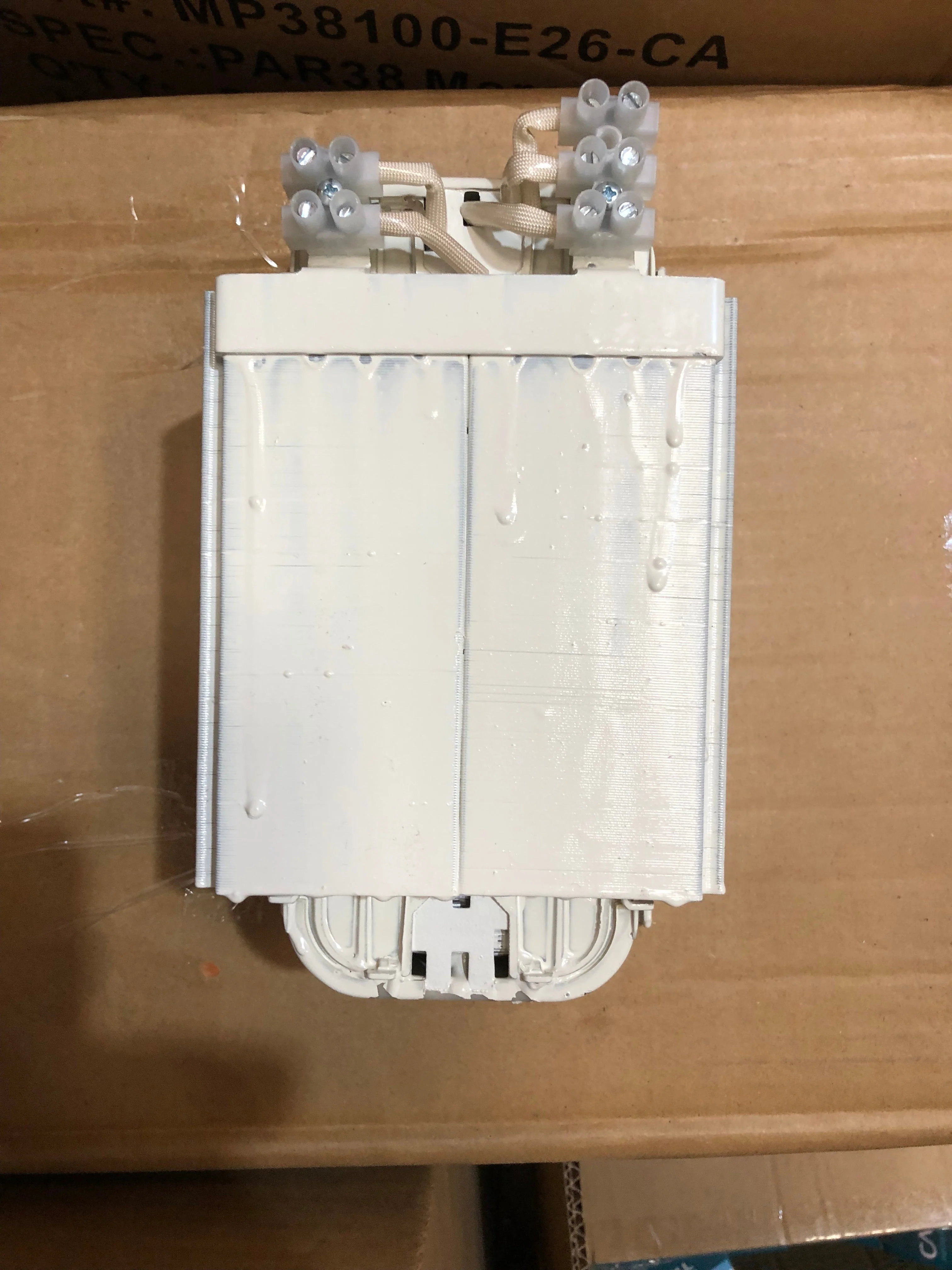

OGLI 1000W ST 120 380-415V 50Hz
|
BALLAST |
TECHNICAL DATA |
Type |
OGLI 1000W ST 120 380-415/50 100/50% |
Ballast for HI lamps
OGLI 1000W ST 120 380-415/50 100/50% Ord. No. 20881172 - 11034
Â
 Capacitor required : CA15MFD-480-mt
|
Stanadards Directeives Declarations Approvals |
 |
EN 60923, EN 61347 RoHS - 2011/65/EU CE - |
|
Lamp |
Type |
HI 1000W 4,4A |
|
Network (line voltage) |
V / Hz |
380; 400; 415 / 50 |
|
Current |
A |
4,4 |
|
Losses - warm |
W |
41,8 |
|
cosfin |
- |
0,57 |
|
h |
% |
- |
|
tw/DÂ tn Thermal protection |
K |
130/ 70 No |
|
 L |
 mm |
 174 |
|
D1 |
mm |
160 |
|
Weight |
Kg |
7,75 |
|
 Packing |
 Pcs./Carton |
 3 |
|
Packing |
Pcs./Pallet |
108 |
|
Impregnation |
 |
Vacuum impregnated with polyester resin |
Â
Â
Â
Â
|
Elkosun d.o.o. Tržaška cesta 23 SI -2000 Maribor www.elkosun.com |
TD 11034 Date: 6. 06. 2016 |
 Page 1 |
