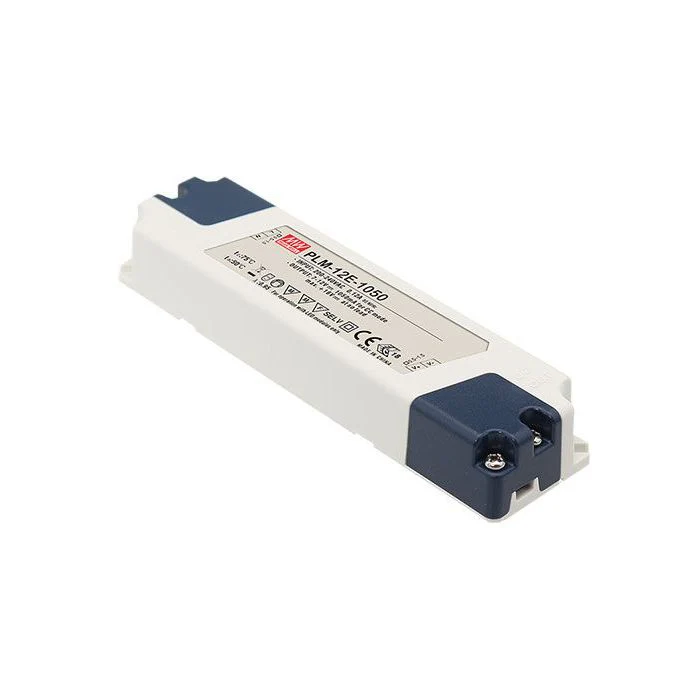

PLM-12ES - Mean Well PLM-12 Series LED Driver 12W 350mA – 1050mA
Constant current designBuilt-in active PFC functionProtections:Â Short circuitOther features:Universal input/ Full range (110~295VAC)No load power consumption <0.5WCooling by free air convectionFully isolated plastic caseSmall and compact sizeClass II power unit, no FG100% full load burn-in testHigh reliability, low costSuitable for LED lighting and moving sign applications2 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 12 Output Current Choose Option Dimmable (Type) No Dimensions 145x 38x 22 (LxWxH) Mm EMC Standards Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547, light industry level (surge 2KV), criteria B Safety Standards Design refer to EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -30~+50°C PDF Datasheet PLM-12E-spec_2.pdf
More Information Manufacturer Mean Well Output Wattage (W) 12 Output Current Choose Option Dimmable (Type) No Dimensions 145x 38x 22 (LxWxH) Mm EMC Standards Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547, light industry level (surge 2KV), criteria B Safety Standards Design refer to EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -30~+50°C PDF Datasheet PLM-12E-spec_2.pdf
$8.01
Original: $22.88
-65%PLM-12ES - Mean Well PLM-12 Series LED Driver 12W 350mA – 1050mA—
$22.88
$8.01Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Constant current designBuilt-in active PFC functionProtections:Â Short circuitOther features:Universal input/ Full range (110~295VAC)No load power consumption <0.5WCooling by free air convectionFully isolated plastic caseSmall and compact sizeClass II power unit, no FG100% full load burn-in testHigh reliability, low costSuitable for LED lighting and moving sign applications2 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 12 Output Current Choose Option Dimmable (Type) No Dimensions 145x 38x 22 (LxWxH) Mm EMC Standards Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547, light industry level (surge 2KV), criteria B Safety Standards Design refer to EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -30~+50°C PDF Datasheet PLM-12E-spec_2.pdf
More Information Manufacturer Mean Well Output Wattage (W) 12 Output Current Choose Option Dimmable (Type) No Dimensions 145x 38x 22 (LxWxH) Mm EMC Standards Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547, light industry level (surge 2KV), criteria B Safety Standards Design refer to EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -30~+50°C PDF Datasheet PLM-12E-spec_2.pdf
